When your truck is your livelihood and it represents you and your business, it deserves the best! Introducing AIR, Lazer Lamps’ latest LED light bar range specially designed and engineered with the heavy truck and commercial vehicle market in mind. Within the range are 3 variants of lamp: AIR-55, AIR-90, and AIR-130 Elite, with the numerical value representing the power consumption of each lamp. Across the AIR range every consideration has been given through our in-house UK design, engineering, and manufacturing functions to present a high-performance LED solution with striking product design elevated by a monocoque lens construction and signature position light feature. Expectant of any Lazer product, the lighting performance and build quality is completely assured.

The AIR-130 Elite, broadly equivalent in its light distribution to the Triple-R 1000 Elite, represents the pinnacle of lighting performance considering the lamp’s size and power rating, all the time with the robustness and reliability assured backed up by our comprehensive 5-year warranty. Emitting 12,500 raw lumen, and with 1 lux delivered to 592m, the AIR-130 Elite includes black PCBs to give the lamp a stealth appearance in contrast to other products within the AIR range. The light distribution has been carefully engineered with the vertical and horizontal spread optimised for road use including from higher vehicle mounting positions. The high beam performance of the light, operating at 100%, is above the permissible UNECE Reg 149 parameters for a road-legal driving light, so dual-output functionality allows for a reduction in the output to be within the regulation limits.

Aside from the enviable levels of high beam illumination provided, the AIR products all feature an integrated ‘twin’ white or amber position light. Aside from the safety benefits, utilising the latest technologies and materials has created a distinctive signature appearance viewed from near or afar. When operating the white position light this is approved to the UNECE Reg148 standard for on-road use.

The styling and build quality of the AIR products is amplified by its injection moulded monocoque polycarbonate lens. Boasting a lifetime guarantee on the ‘unbreakable’ lens, finished with hardcoat lacquer (an example of one of the upstream manufacturing process Lazer also manages in-house), the lens flows down and under the lamp, with a textured appearance to the underside. The unique lamp design is enhanced thanks to the supplied innovative ‘Centre Mount’ system which permits the light to sit much lower relative to the mounting point for a clean sleek installation.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

AIR-130 Elite

£492.00Price
  • 1x AIR-130 ELITE

    BOOST
    MODE

    LOW OUTPUT/
    E-MARK MODE


    Voltage Range (DC) 10-32V
    LED Life 50,000 hours
    Weight 1.65 kg

    HIGH BEAM FUNCTION
    Total Luminous Flux 12,500 Lm 3,125 Lm
    Total Driver 'FOV' Flux † 7,875 Lm 1,968 Lm
    Colour Temperature 5000K
    Power Consumption 130 Watts 21 Watts
    Peak Current Draw 11.6 Amps 2.3 Amps
    Current Draw (14.4V) 10.2 Amps 1.5 Amps
    Connector 3-Pin Superseal (+25cm Cable)

    DIMENSIONS
    Width 411 mm
    Depth 106 mm
    Height 82 mm

    CERTIFICATION
    IP Rating # IP68
    High Beam (E9 approval) ECE R149 - Ref: 17.5 (in Low Output Mode only)
    Position Light (white only) ECE R148
    EMC Certification ECE R10
    Salt Spray Test ISO 9227
    Dump Load Protection ISO 7637-2

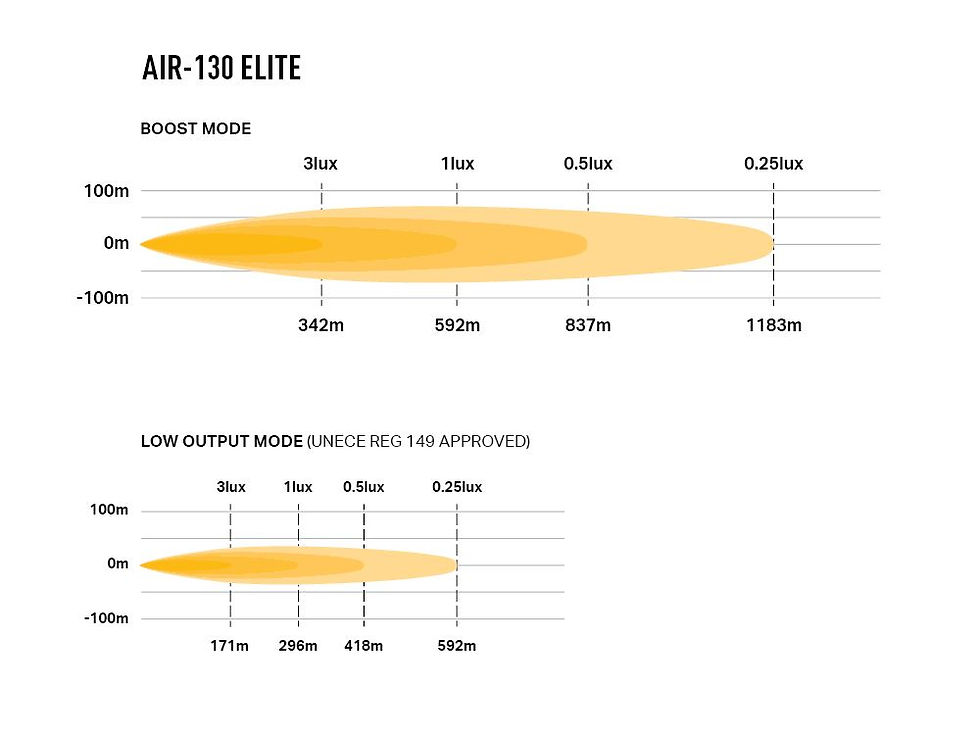

    PHOTOMETRIC DATA
    Horizontal / Vertical Beam Angle 34° / 17°
    0.25 lx Line 1183m 592m
    0.5 lx Line 837m 418m
    1 lx Line 592m 296m
    3 lx Line 342m 171m




    † - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

    # - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
